Reterminate Service

The Reterminate Service Node

Category - Call Manipulation

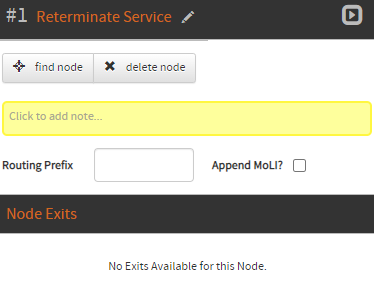

the Reterminate Service node

The Reterminate Service node allows users to force the call to re-enter service logic again as a new call, possibly with a routing prefix prepended and a MoLI appended.

the Reterminate Service node

A routing prefix may be specified in Routing Prefix. If present, these digits will be prepended to the current destination number when the call is reterminated.

To append the current MoLI for the call during call retermination, select Append MoLI. The MoLI is taken from network data presented to the service.

If additional configuration options are required, select the arrow icon in the header to display them:

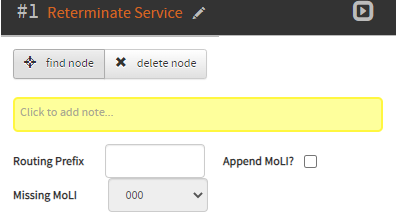

the Reterminate Service node

When no MoLI is available in the presented network data, the Missing MoLI option determines the value to use for this field. Note that this value is only used if Append MoLI is selected.

Configuration

To configure the node:

  1. If required, set a Routing Prefix to prepend to the current destination number.
  2. If required, select Append MoLI.
  3. If appending a MoLI, select the action to take for Missing MoLI.
