SCC Messages
Introduction
The SIP Logic Hand-Off Application (LhoSipApp) uses SCC-...
messages for SIP call control.
These messages are transmitted over the n2svcd message bus between the LHO SIP Application
(LhoSipApp) and the Logic Application (LogicApp).
The start of the message sequence is slightly different between incall and outcall scenarios:
However once the call is established then the subsequent SCC-...
messages are identical.
The SCC-...
message names are divided into two categories depending on which
direction the message is flowing.
a. SCC-HANDLE-...
messages from LhoSipApp
to LogicApp
to request service logic assistance.
b. SCC-DO-...
messages from LogicApp
to LhoSipApp
to perform service logic actions.
SIP Incall Messages
Initiated by LhoSipApp
by sending SCC-HANDLE-ALEG-INBOUND-INVITE
to LogicApp
.
Handled by LhoSipLuaService which selects the Lua script to execute.
The internal messages used between LhoSipApp
and LogicApp
during incall setup are:
SCC-HANDLE-ALEG-INBOUND-INVITE
SCC-DO-ALEG-PROCEEDING
SCC-DO-ALEG-DECLINE-FINAL
SCC-HANDLE-ALEG-PROCEEDED
…plus the common messages.

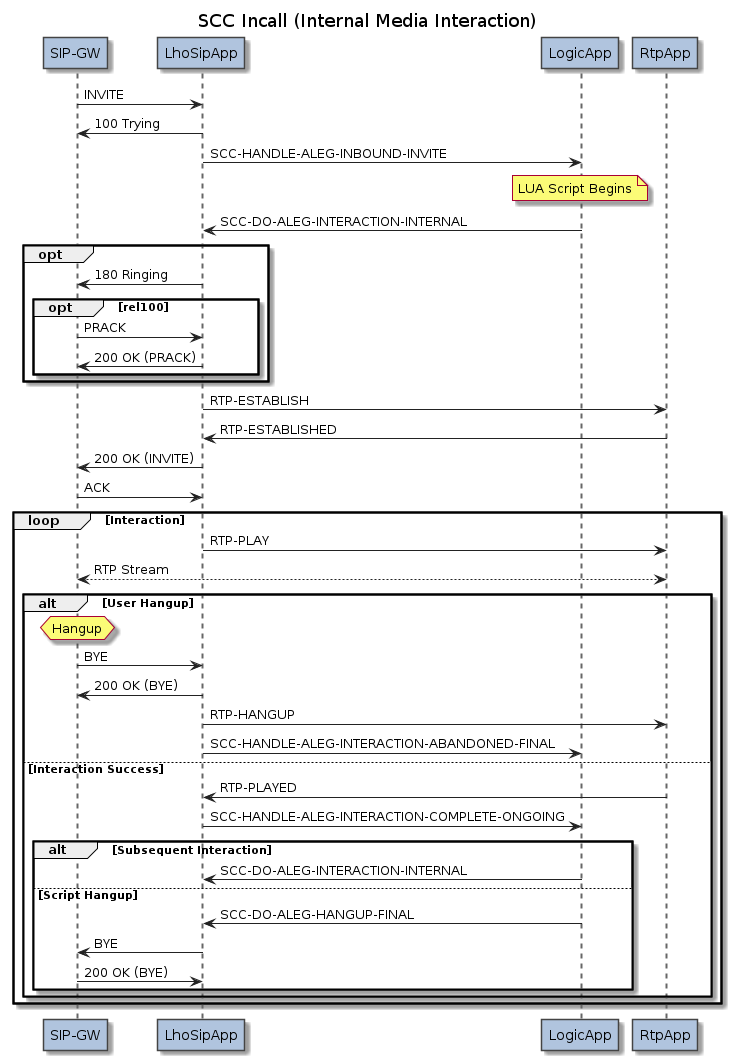

Here is an example internal n2svcd message flow for the incall scenario with interaction,
where the RTP stream for the interaction is generated by an internal Media Server
(an instance of the RtpApp
), not from an external SRF.
SIP Out-Call Messages
Initiated by LogicApp
from an already-running Lua script. That Lua script must be initiated
by some other mechanism, e.g. an inbound REST request.
The internal messages used between LhoSipApp
and LogicApp
during outcall setup are:
SCC-DO-ALEG-OUTBOUND-INVITE
SCC-HANDLE-ALEG-FAILURE-FINAL
SCC-HANDLE-ALEG-ANSWER-ONGOING
…plus the common messages.

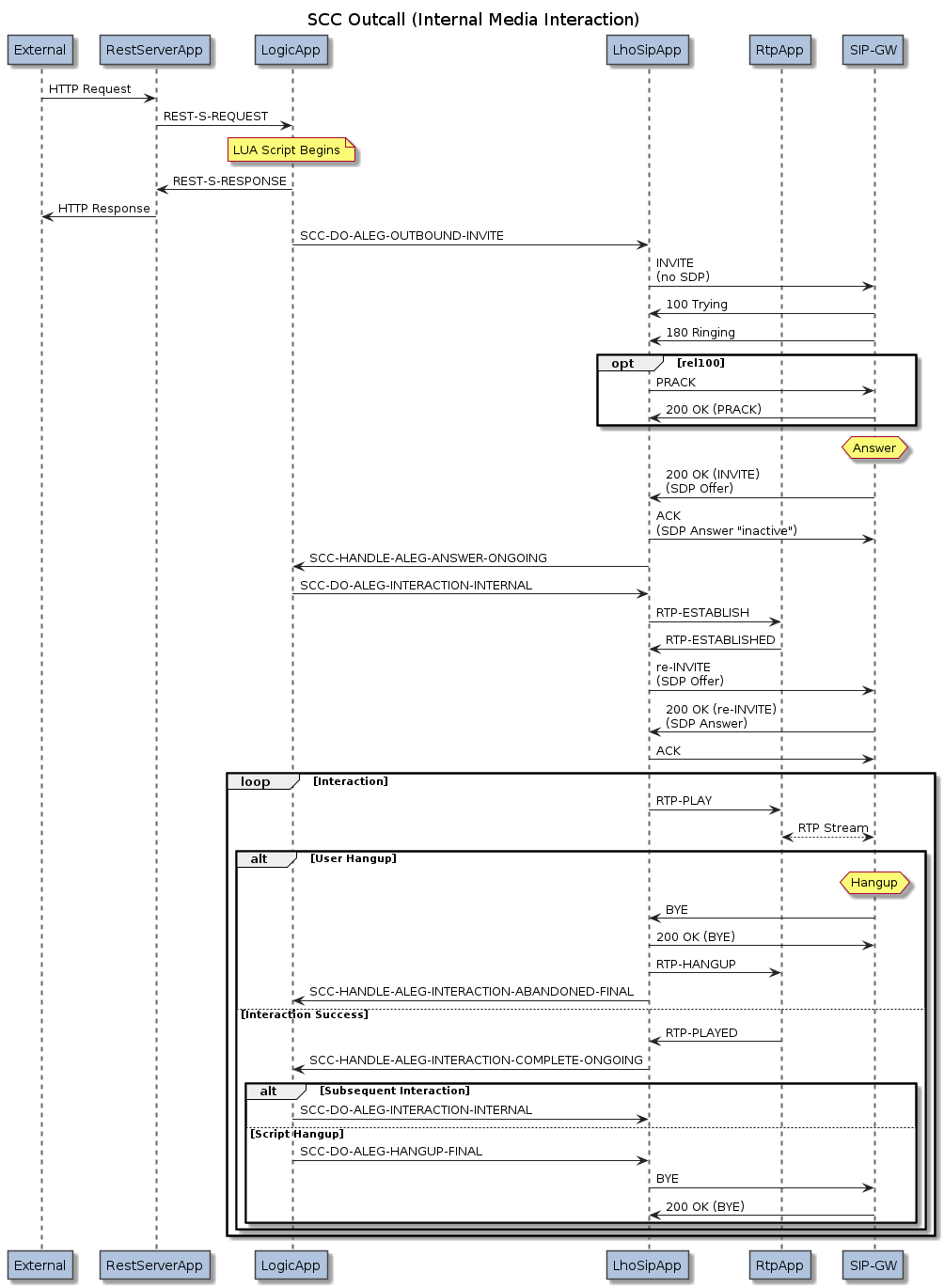

Here is an example internal n2svcd message flow for the outcall scenario with interaction,
where the RTP stream for the interaction is generated by an internal Media Server
(an instance of the RtpApp
), not from an external SRF.
SIP Common Messages
The following messages are common to both incall and outcall.
SCC-DO-ALEG-HANGUP-FINAL
SCC-DO-ALEG-INTERACTION-INTERNAL
SCC-DO-ALEG-INTERACTION-EXTERNAL
SCC-DO-BLEG-TERMINATION-ATTEMPT
SCC-DO-CHARGE-EXTEND
SCC-DO-SHUTDOWN
SCC-HANDLE-ALEG-INTERACTION-COMPLETE-ONGOING
SCC-HANDLE-ALEG-INTERACTION-ABANDONED-FINAL
SCC-HANDLE-ALEG-ABANDON-FINAL
SCC-HANDLE-BLEG-ANSWER-FINAL
SCC-HANDLE-BLEG-ANSWER-ONGOING
SCC-HANDLE-BLEG-FAILURE-ONGOING
SCC-HANDLE-BLEG-TEARDOWN-ONGOING
SCC-HANDLE-SHUTDOWN
SCC-DO-ALEG-OUTBOUND-INVITE
The SCC-DO-ALEG-OUTBOUND-INVITE
instructs the LhoSipApp
to initiate an outbound A-Leg INVITE.
This message is sent by the LhoSipOutcallLuaAgent
.
This message will cause a new LhoSipInstance
instance to be created, which initially has
no leg control. The instance will begin a new outbound INVITE attempt associated with the A-Leg, and
will return back to the service logic once the status of that A-Leg SIP INVITE Request attempt is known.
If the A-Leg outbound SIP INVITE Request attempt fails, then the response back to LhoSipOutcallLuaAgent
will be SCC-HANDLE-ALEG-FAILURE-FINAL
and no further messages can occur in relation to that
LhoSipInstance
.
Note: In some unexpected error scenarios, the SCC-HANDLE-SHUTDOWN
message may be used instead of
SCC-HANDLE-ALEG-FAILURE-FINAL
.
If the A-Leg attempt succeeds, then the response message will be SCC-HANDLE-ALEG-ANSWER-ONGOING
,
and the service logic may proceed to process the call control in a manner essentially identical to
the incall scenario where an inbound SIP INVITE Request caused SCC-HANDLE-ALEG-INBOUND-INVITE
to be sent to the LogicApp and is handled by the LhoSipIncallLuaService
.
I.e. Once the outbound A-Leg is established the service logic may attempt to:
- Perform A-Leg interaction using the
SCC-DO-ALEG-INTERACTION-*
messages (internal or external). - Perform B-Leg termination as a back-to-back user agent using
SCC-DO-BLEG-TERMINATION-ATTEMPT
. - Hangup the A-Leg using
SCC-DO-ALEG-HANGUP-FINAL
.
The attributes of the SCC-DO-ALEG-OUTBOUND-INVITE
message are:
Field | Type | Description |
---|---|---|
scc
|
Object | [Required] The SIP call control parameters for the standalone outcall A-Leg. |
.no_answer_timeout
|
Integer |
Specify how long the INVITE will be permitted to try before we CANCEL .(Default = a system-configured default value). |
.calling_party
|
(+)Hex String |
[Required] Calling Party address digits. This will be used to construct the From header in the outbound SIP INVITE Request.Depending on configuration, this may help determine the outbound SIP trunk on which the SIP INVITE Request is set. It must contain only 0-9A-F digits.
|
.called_party
|
(+)Hex String |
[Required] Called Party address digits. This will be used to construct the To header in the outbound SIP INVITE Request.This is nearly always used to determine the outbound SIP trunk on which the SIP INVITE Request is set. It must contain only 0-9A-F digits.
|
.extra_headers
|
Object |
Additional user headers to add for this outbound A-Leg SIP INVITE. The object key is the header name. The object value is an array of header values. (Default = do not add extra outbound SIP INVITE user headers). |
SCC-HANDLE-ALEG-FAILURE-FINAL
The SCC-HANDLE-ALEG-FAILURE-FINAL
is sent by the LhoSipApp
to the LhoSipOutcallLuaAgent
to inform it that the attempt to perform an outbound A-Leg SIP INVITE (outcall) has not been
successful.
This can occur when:
- The far end was not reachable.
I.e. No SIP Response at all was received from the far-end within the SIP state machine timer, and/or service logic No Answer timer.
- The far end acknowledged the request, but did not complete it within the NoAnswer timer.
I.e. A 100 Trying and/or 1xx Provisional SIP INVITE Response was received, but no final 2xx or 300-699 SIP INVITE Response was received.
-
A final 300-699 SIP INVITE Response was received.
-
An unacceptable 2xx SIP INVITE Response was received.
This message indicates that the LHO SIP Instance is over, and no more messages should be sent by the service logic.
The attributes of the SCC-HANDLE-ALEG-FAILURE-FINAL
message are:
Field | Type | Description |
---|---|---|
scc
|
Object | [Required] The SIP call control parameters for the standalone outcall A-Leg. |
.reason
|
"No Answer" / "No Route" / "Declined"
|
[Required] The reason why the A-Leg could not be established. |
.code
|
300 - 699
|
The received final SIP INVITE Response code, if one was received. |
SCC-HANDLE-ALEG-ANSWER-ONGOING
The SCC-HANDLE-ALEG-ANSWER-ONGOING
is sent by the LhoSipApp
to the LhoSipOutcallLuaAgent
to inform it that the attempt to perform an outbound A-Leg SIP INVITE (outcall) was successful
due to the receipt of an acceptable “200 OK” SIP INVITE Response.
The service logic must provide subsequent call control instructions, using the same SCC messages
as would be applicable following the receipt of SCC-HANDLE-ALEG-INBOUND-INVITE
except that
neither SCC-DO-ALEG-PROCEEDING
nor SCC-DO-ALEG-DECLINE-FINAL
may be sent by the service logic
in relation to an A-Leg which was established using outcall.
The attributes of the SCC-HANDLE-ALEG-ANSWER-ONGOING
message are:
Field | Type | Description |
---|---|---|
scc
|
Object | [Required] The SIP call control parameters for the standalone outcall A-Leg. |
.code
|
200 - 299
|
The final SIP INVITE Response code that was received. By default LhoSipApp will only accept 200 as a permitted response code.
|
SCC-DO-ALEG-PROCEEDING
The SCC-DO-ALEG-PROCEEDING
instructs the LhoSipApp
to send a 1XX Proceeding Response, and
optionally to refresh the service logic wait timer.
This can only be sent if the inbound INVITE has not yet been sent a final response. Any of the following service logic actions may cause a final response to be sent:
- Attempting to terminate a B-Leg.
- Playing announcement using an external SRF.
- Playing announcement using an internal RTP media server, unless
183 Early Media
was used.
In some message flow scenarios, it is necessary to check the decline_ok
attribute of the
message received from the LhoSipApp
to determine if the SCC-DO-ALEG-PROCEEDING
message
may be sent.
For example, the SCC-HANDLE-ALEG-INTERACTION-COMPLETE-ONGOING
and SCC-HANDLE-BLEG-TEARDOWN-ONGOING
messages indicate that the call is still controlled, but may or may not allow for a decline
or proceeding operation to be performed.
Note that the this SCC-DO-ALEG-PROCEEDING
message should not (and may not) be used for sending
a 100 Trying
provisional response. The sending of 100 Trying
is performed entirely automatically
by the underlying framework and is not user-controlled.
After sending this message, the service logic should send no further messages until it receives one of
the following messages from the LhoSipApp
:
SCC-HANDLE-ALEG-PROCEEDED
SCC-HANDLE-SHUTDOWN
The attributes of the SCC-DO-ALEG-PROCEEDING
message are:
Field | Type | Description |
---|---|---|
scc
|
Object | [Required] The SCC control parameters for the message. |
.code
|
Integer |
[Required] Proceeding status code to return in the range 100 -199 .
|
.seconds
|
Integer |
The number of seconds from now to refresh the service logic timer. (Default = do not refresh the service logic timer) |
Note that the initial service logic timer is defined in milliseconds, but the refresh timer value (if present) is specified in seconds.
SCC-DO-ALEG-DECLINE-FINAL
The SCC-DO-ALEG-DECLINE-FINAL
instructs the LhoSipApp
to end the call.
This can only be sent if the inbound INVITE has not yet been sent a final response. Any of the following service logic actions may cause a final response to be sent:
- Attempting to terminate a B-Leg.
- Playing announcement using an external SRF.
- Playing announcement using an internal RTP media server, unless
183 Early Media
was used.
The decline_ok
flag of the SCC-HANDLE-ALEG-INTERACTION-COMPLETE-ONGOING
message indicates if
it is still possible to decline the call after a pre-call announcement – i.e.
that we are still in the early media phase.
If this flag is true, then the service logic may use SCC-DO-ALEG-DECLINE-FINAL
following
a pre-call announcement. Otherwise SCC-DO-ALEG-HANGUP-FINAL
must be used instead.
The decline message allows control of final SIP status code in the range 3xx
-6xx
. When using
SIP status code 302 Moved Temporarily
with an alternate called_party
place in the response
Contact
address.
In any case we can also request an optional 180 Ringing
provisional response to be sent
directly before the final response.
Note that Authentication codes 401
and 403
are handled internally by the LhoSipApp
, and the
service logic does not need to (and should not) use this method to perform authentication checks
The attributes of the SCC-DO-ALEG-DECLINE-FINAL
message are:
Field | Type | Description |
---|---|---|
scc
|
Object | [Required] The SCC control parameters for the message. |
.code
|
Integer |
Status code to return in the range 300 -699 .(Default = 603 or other platform-configured default value)
|
.contact_user
|
(+)Hex String |
An alternate contact digits to specify in the Contact header.This should be hex digits with optional leading + .This is typically only used when code = 302 .(Default = do not specify the Contact header in the final response)
|
.reason
|
Object | An Object defining the contents of a Reason header. |
.protocol
|
SIP /Q.850
|
The protocol of the value in the reason. (Default = SIP )
|
.value
|
Integer | A release cause value to include in the reason header. |
.text
|
String |
The text to supply with the reason. (Default = Terminated )
|
SCC-DO-ALEG-HANGUP-FINAL
The SCC-DO-ALEG-HANGUP-FINAL
instructs the LhoSipApp
to end the call by terminating the A-Leg. The code
and reason
parameters define additional information which is used in the teardown of the A-Leg only.
The A-Leg teardown will be performed by:
- If the A-Leg is an inbound SIP INVITE Request which is still Proceeding (no final response sent) then a final
SIP INVITE Response will be sent using the indicated status code, or the default value. If a custom
Reason
header is requested then this header value will be set on the final SIP INVITE Response. - If the A-Leg is an outcall, or is an incall which has been Confirmed by a final response, then the specified status code is ignored, and the Reason header (if specified) will be set as a header on the SIP BYE Request.
If a B-Leg is present then a teardown will be performed using SIP BYE or SIP CANCEL as appropriate, using default parameters.
The attributes of the SCC-DO-ALEG-HANGUP-FINAL
message are:
Field | Type | Description |
---|---|---|
scc
|
Object | [Required] The SCC control parameters for the message. |
.code
|
Integer |
Status code to return in the range 300 -699 for the SIP INVITE Response.This value is only used in the case where the A-Leg is an inbound SIP INVITE which is still Proceeding. (Default = 603 or other platform-configured default value)
|
.reason
|
Object |
An Object defining the contents of a Reason header.This Reason will be included in either the SIP INVITE Final Response message sent for the A-Leg
(if the A-Leg INVITE transaction was an inbound request which is still Proceeding) or in the SIP BYE Request
sent for the A-Leg.
|
.protocol
|
SIP /Q.850
|
The protocol of the value in the reason. (Default = SIP )
|
.value
|
Integer | A release cause value to include in the reason header. |
.text
|
String |
The text to supply with the reason. (Default = Terminated )
|
SCC-DO-ALEG-INTERACTION-INTERNAL
The SCC-DO-ALEG-INTERACTION-INTERNAL
message is sent by the LogicApp
to the LhoSipApp
to request the
local framework to provide a local RTP endpoint (via SDP in SIP) for the purposes of streaming RTP audio
packets to the one leg of the call currently under control. I.e. when we want to invoke the on-node
media server resident within our executing framework.
The supported model is:
- The audio can be sent to the A-Leg only.
After sending this message, the service logic should send no further messages until it receives one of
the following messages from the LhoSipApp
:
SCC-HANDLE-ALEG-INTERACTION-COMPLETE-ONGOING
SCC-HANDLE-ALEG-INTERACTION-ABANDONED-FINAL
SCC-HANDLE-SHUTDOWN
Note that the first time this message is sent, the framework will allocate RTP port(s) and will perform the SIP messaging on the A-Leg for the SDP negotiation related to our local RTP endpoint. The RTP negotiation may include:
- Sending SIP INVITE 200 OK Response on the A-Leg with SDP Answer (assuming SDP Offer was received in SIP INVITE).
- Sending SIP INVITE 200 OK Response on the A-Leg with SDP Offer (assuming no SDP Offer was received in SIP INVITE) - in which case the SDP Answer will be received in the ACK.
- Sending SIP INVITE 183 Session Progress Response with SDP Answer (assuming SDP Offer was received in SIP INVITE and Early Media is being used).
- Sending SIP re-INVITE Request on A-Leg with SDP Offer (assuming SIP INVITE 200 Response has previously been sent on the A-Leg) - in which case the SDP Answer will be received in SIP re-INVITE 200 OK Response.
These are in fact the same standard options which would apply for a back-to-back user agent connection to an external B-Leg, although in this case the B-Leg is us acting as an RTP endpoint to generate audio.
Refer to the N2SIP Protocol Conformance Statement for a more thorough description of the supported SDP exchange mechanisms with specific reference to RFC 6337.
If there is currently a temporary B-Leg connection active for the purpose of performing announcements with an external media server, then the framework will terminate the in-progress external announcement channel and then proceed to setup of the internal on-node RTP media session.
If there is currently a B-Leg end-to-end call in progress, then this message will be rejected, i.e. it is not permitted to use this internal announcement mechanism while a monitored or charged call is currently in progress. The service logic must explicitly end the B-Leg end-to-end call, or wait for it to be terminated by one of the parties.
After this announcement is complete (either because it played to the end of message, or because it was interrupted by user input) then the established RTP audio channel will remain established in the anticipation of subsequent announcements using the same on-node RTP audio media server resources.
The RTP channel will be automatically ended if the subsequent action is an action which does not use it - e.g. the call is ended, or a request is made to establish an call to a B-Leg, or to establish a temporary B-Leg connection for the purpose of playing announcements using an external media server.
Note: This message can be sent with no announcement information, in which case the RTP audio channel will be established by SDP exchange (as described above) but the audio will not yet start streaming.
This is useful for IVR implementations, where the desired behavior is:
- Receive inbound SIP INVITE for the purpose of being an IVR under external control.
- Establish RTP channel (send
SCC-DO-ALEG-INTERACTION-INTERNAL
without announcement details). - Notify the external controller that we are ready for instructions (e.g. by sending INAP AssistRequestInstructions).
- Wait for interaction instructions (e.g. by receiving INAP PlayAnnouncement).
- Execute the interaction instructions (using
SCC-DO-ALEG-INTERACTION-INTERNAL
with announcement details). - Return the result of instructions (e.g. by sending INAP SpecializedResourceReport).
- Go to step 4.
Note that in the just-described case, we are the media server, operating under locally-implemented service logic
control, or under external control from another node. This is the reverse of the situation where we are using
SCC-DO-ALEG-INTERACTION-EXTERNAL
and we are acting as the controller, controlling an external media server.
The attributes of the SCC-DO-ALEG-INTERACTION-INTERNAL
message are:
Field | Type | Description |
---|---|---|
scc
|
Object | [Required] The detailed control parameters for the interaction. |
.early_media
|
require / prefer / allow / never
|
Specify if this interaction should use "183 Early Media" instead of "200 OK". Note that when performing multiple internal media server interactions in sequence, this parameter is only relevant for the first interaction in that sequence – any subsequent interactions using the same internal media server connection will silently ignore this parameter. require - This interaction must use Early Media, or generate a run-time script error.prefer - This interaction should use Early Media, if allowed by the SIP layer.allow - This interaction may use Early Media, if preferred by the SIP layer.never - This interaction must never use Early Media, regardless of SIP layer preferences.(Default = allow )
|
.aleg_headers
|
Object |
This is a map of custom SIP headers to include in the SIP INVITE Response sent to the A-Leg when establishing
the RTP channel. The Object attributes are the header key names, and the Object values must be either a simple
String or an Array of simple String values. The header key names must not include reserved, special SIP header names, this functionality is for adding custom header values only. (Default = Do not add any service logic custom headers to the SIP INVITE Response) |
.announcement
|
Object |
Container for the attributes of the announcement to be constructed and streamed. This structure is passed through (with potential modifications as indicated) into the RTP-PLAY message sent to the RtpApp .(Default = Establish RTP but do not begin streaming) |
.message_id
|
Integer |
A single message ID to play. This ID must be configured within the RtpApp database or file-based configuration.The definition of this ID may depend on the specified language, and the definition may allow multiple audio file fragements and/or one or more variable parts. Specify exactly one of .message_id or .message_ids or .files .
|
.message_ids
|
Array of Integer |
An array of one or more message IDs to play in sequence. Each ID listed here must be configured within the RtpApp database or file-based configuration.The definition of each ID may depend on the specified language, and the definition may allow multiple audio file fragements and/or one or more variable parts. Each ID listed here may contain variable parts. The supplied variable parts list must contain sufficient variable parts for all message IDs. Specify exactly one of .message_id or .message_ids or .files .
|
.files
|
Array of String |
Explicit Array of one or more filenames to play in sequence. Specifying this parameter will bypass the message ID translation
process in RtpApp and allows the service logic to explicitly control the audio file fragments to be streamed.All filenames must be from the announcement language, it is not possible to override the language per-fragment. Each filename must not include the audio file type suffix part e.g. must not contain the .ul , or .amr .Each filename must include the subdirectory announcements or variable_parts .The directory name "a" is a supported abbreviation for "announcements". The directory name "vp" or "v" is a supported abbreviation for "variable_parts". Example files list: [ 'a/You_Entered', 'v/1', 'vp/4' ] .
|
.language
|
String |
Optional language name to use instead of the default value configured within the RtpApp .The RtpApp will use this when mapping announcement ID/IDs into a file list. The RtpApp will use this expanding variable parts into audio file fragments. This language name must be configured within the RtpApp database or file-based configuration.Refer to the RtpApp configuration documentation. (Default = The default language configured in the RtpApp )
|
.repetition
|
Positive Integer |
A requested repetition count, the announcement will be repeated up to the indicated number of times. (Default = Play the announcement list only once). |
.duration
|
Positive Integer |
The total permitted duration of the interaction including repetitions and any silence. (Default = the configured rtp_max_play_secs for the SipApp ).
|
.variables
|
Array of Object |
An array of variable values to substitute into pre-defined placeholders in the message structure. Each variable part is an object which specifies exactly one of the attributes as follows. |
.integer
|
Integer |
An integer value to speak as a variable part. Construction rules for the chosen/default langage will be used. |
.number_digits
|
Integer |
An integer value to speak as a variable part. Construction rules for the chosen/default langage will be used. |
.time_hhmm
|
<HHMM> |
An integer hour and minute to speak as a variable part. Value is in the range 0000 -2400 .Construction rules for the chosen/default langage will be used. |
.date_yymmdd
|
<YYMMDD> |
A 6-digit integer year/month/day to speak as a variable part. Construction rules for the chosen/default langage will be used. |
.date_yyyymmdd
|
<YYYYMMDD> |
An 8-digit integer year/month/day to speak as a variable part. Construction rules for the chosen/default langage will be used. |
.price_digits
|
Integer |
An integer value of "cents" to speak as a variable part. Construction rules for the chosen/default langage will be used. |
.collect
|
Object |
Container for information related to digit collection. Digit collection will be performed if and only if this container element is present. (Default = do not collect user input digits). |
.min_num_digits
|
1 - 32
|
The minimum number of digits which the internal Media Server will be instructed to collect. [Required] This value is required when collect is specified.
|
.max_num_digits
|
1 - 32
|
The maximum number of digits which the internal Media Server will be instructed to collect. This value must be greater than or equal to min_num_digits .[Required] This value is required when collect is specified.
|
.end_digit
|
#*A-F0-9
|
The digit which specifies End of Input. (Default = The default value configured in the RtpApp ).
|
.cancel_digit
|
#*A-F0-9
|
The digit which specifies Cancel Input. (Default = The default value configured in the RtpApp ).
|
.first_digit_timeout
|
Positive Integer |
The number of seconds allowed between completing the announcement and entering the first digit. (Default = The default value configured in the RtpApp ).
|
.inter_digit_timeout
|
Positive Integer |
The number of seconds allowed between entering one digit and entering the subsequent digit. (Default = The default value configured in the RtpApp ).
|
.interruptable
|
0 / 1
|
Informs the internal Media Server that DTMF input from the user should interrupt the playing of the prompt. (Default = the prompt may be interrupted by the user). |
.private_digits
|
0 / 1
|
Indicates that the collected digits are private, e.g. PIN entry, and the framework should not log them to EDR. (Default = the default behavior configured for the application). |
SCC-DO-ALEG-INTERACTION-EXTERNAL
The SCC-DO-ALEG-INTERACTION-EXTERNAL
message is sent by the LogicApp
to the LhoSipApp
when it wishes the LhoSipApp
to establish a temporary B-Leg connection to an external media
server, and then to communicate with that external media server to request it to perform interaction.
The supported model is:
- The external SRF will be a B-Leg established by us acting as a back-to-back user agent.
- We establish a temporary connection between the original A-Leg, and this SRF B-Leg.
- At this time, the only control mechanism supported is INAP over SIGTRAN.
The service logic must specify the name of the INAP-controlled SRF to use, which must be a
configured SRF in the LhoSipApp
.
After sending this message, the service logic should send no further messages until it receives one of
the following messages from the LhoSipApp
:
SCC-HANDLE-ALEG-INTERACTION-COMPLETE-ONGOING
SCC-HANDLE-ALEG-INTERACTION-ABANDONED-FINAL
SCC-HANDLE-SHUTDOWN
Note that the first time this message is sent, the framework will establish a temporary B-Leg connection to the external SRF. The B-Leg is established by sending a SIP INVITE Request, where:
- The “To” URI address user part is a string based on the chosen SRF’s configured destination routing address.
- The “To” URI address user part contains a configurable value identifying “this node” for the purpose of routing the AssistRequestInstructions.
- The “To” URI address user part will contain a correlation ID value identifying this call for the purpose of correlating the AssistRequestInstructions.
The B-Leg response will be passed-through using the standard B2BUA mechanism for B-Leg/A-Leg interaction.
Refer to the N2SIP Protocol Conformance Statement for a more thorough description of the supported SDP exchange mechanisms with specific reference to RFC 6337.
If there is currently a temporary B-Leg connection active for the purpose of performing announcements with an different external media server, then the framework will terminate the in-progress external announcement channel and then proceed to establish a new temporary connection to the requested new SRF.
If there is currently an internal on-node RTP media session in progress, then this will be ended before beginning the process to establish the temporary connection to the requested SRF.
If there is currently a B-Leg end-to-end call in progress, then this message will be rejected, i.e. it is not permitted to use this external announcement mechanism while a monitored or charged call is currently in progress. The service logic must explicitly end the B-Leg end-to-end call, or wait for it to be terminated by one of the parties.
After each announcement is complete (either because it played to the end of message, or because it was interrupted by user input) then the established temporary connection will remain established in the anticipation of subsequent announcements using the same external SRF name.
The temporary connection will be automatically ended if the subsequent action is an action which does not use it - e.g. the call is ended, or a request is made to establish an call to a B-Leg, or to establish a connection for the purpose of playing announcements using an internal media server, or to establish a temporary B-Leg connection for the purpose of playing announcements using a different external SRF.
Note: This message may not be sent without announcement information.
The underlying processing including INAP messaging is managed by the LhoSipApp
:
- Send SIP INVITE to the address for the requested INAP-controllable SRF (including our SCP ID and correlation ID).
- Wait until we receive INAP AssistRequestInstructions.
- Send our instructions (INAP PlayAnnouncement or PromptAndCollectUserInformation).
- Wait to receive interaction results (INAP SpecializedResourceReport or PromptAndCollectUserInformation-Result).
- Return to the service logic and allow it to decide how to proceed.
The attributes of the SCC-DO-ALEG-INTERACTION-EXTERNAL
message are:
Field | Type | Description |
---|---|---|
scc
|
Object | [Required] The detailed control parameters for the interaction. |
.srf_name
|
String |
[Required] An external SRF name as configured in the LhoSipApp .
|
.announcement
|
Object | [Required] Container for the attributes of the announcement to be constructed and played. |
.message_id
|
Integer |
A single message ID to play. This ID must be coordiated with the external SRF. Specify exactly one of .message_id or .message_ids .
|
.message_ids
|
Array of Integer |
An array of message IDs to play. These IDs must be coordiated with the external SRF. Specify exactly one of .message_id or .message_ids .
|
.language
|
String |
Optional language name which may be conveyed to the external SRF (if it supports sending of language information). For external INAP-controlled SRFs, this name is mapped to an on-the-wire integer value according to the configured language map. Refer to the LhoSipApp configuration documentation. (Default = Platform-Configured Value) |
.repetition
|
Integer |
A requested repetition count supplied to the SRF. This value is set in informationToSend.inbandInfo.numberOfRepetitions for the PA or PACUI.(Default = do not specify this value to the SRF). |
.duration
|
Integer |
A requested duration value supplied to the SRF. This value is set in informationToSend.inbandInfo.duration for the PA or PACUI.(Default = do not specify this value to the SRF). |
.interval
|
Integer |
A requested interval value supplied to the SRF. This value is set in informationToSend.inbandInfo.interval for the PA or PACUI.(Default = do not specify this value to the SRF). |
.variables
|
Array of Object |
An array of variable values to substitute into pre-defined placeholders in the message structure. Each variable part is an object which specifies exactly one of the attributes as follows. |
.integer
|
Integer | An integer value to speak as a variable part. |
.number_digits
|
Integer | An integer value to speak as a variable part. |
.time_hhmm
|
<HHMM> |
An integer hour and minute to speak as a variable part. Value is in the range 0000 -2400 .
|
.date_yymmdd
|
<YYMMDD> | A 6-digit integer year/month/day to speak as a variable part. |
.date_yyyymmdd
|
<YYYYMMDD> | An 8-digit integer year/month/day to speak as a variable part. |
.price_digits
|
Integer | An integer value of "cents" to speak as a variable part. |
.collect
|
Object |
Container for information related to digit collection. Digit collection will be performed if and only if this container element is present. (Default = do not collect user input digits). |
.min_num_digits
|
1 - 32
|
The minimum number of digits which the SRF will be instructed to collect. This value is set in collectedInfo.collectedDigits.minimumNbOfDigits for the PACUI.[Required] This required when collect is specified.
|
.max_num_digits
|
1 - 32
|
The maximum number of digits which the SRF will be instructed to collect. This value must be greater than or equal to min_num_digits .This value is set in collectedInfo.collectedDigits.maximumNbOfDigits for the PACUI.[Required] This required when collect is specified.
|
.end_digit
|
#*A-F0-9
|
The digit which specifies End of Input. This value is set in collectedInfo.collectedDigits.endOfReplyDigit for the PACUI.(Default = determined by the SRF). |
.cancel_digit
|
#*A-F0-9
|
The digit which specifies Cancel Input. This value is set in collectedInfo.collectedDigits.cancelDigit for the PACUI.(Default = determined by the SRF). |
.first_digit_timeout
|
Positive Integer |
The number of seconds allowed between completing the announcement and entering the first digit. This value is set in collectedInfo.collectedDigits.firstDigitTimeOut for the PACUI.(Default = determined by the SRF). |
.inter_digit_timeout
|
Positive Integer |
The number of seconds allowed between entering one digit and entering the subsequent digit. This value is set in collectedInfo.collectedDigits.interDigitTimeOut for the PACUI.(Default = determined by the SRF). |
.interruptable
|
0 / 1
|
Informs the SRF that DTMF input from the user should interrupt the playing of the prompt. This value is set in collectedInfo.collectedDigits.interruptableAnnInd for the PACUI.(Default = do not specify this value to the SRF). |
.private_digits
|
0 / 1
|
Indicates that the collected digits are private, e.g. PIN entry, and the framework should not log them to any EDR. Note that this disables only the logging of the digits by the service logic and framework. The SRF is a separate, independent node element and this flag does not prevent the SRF from logging the collected digits. (Default = the default behavior configured for the application). |
SCC-DO-BLEG-TERMINATION-ATTEMPT
The SCC-DO-BLEG-TERMINATION-ATTEMPT
is sent by the LogicApp
to the LhoSipApp
to request that a B-Leg
be set-up by sending out a new B-Leg INVITE, and proxying the RTP connection details.
The LhoSipApp
in this case is acting as a Signaling Plane Back-to-Back User Agent (B2BUA) as defined
in RFC 7092. Specifically, as a
“Signaling-only” B2BUA as per RFC 7092, section 3.1.2.
If an (internal or external) SRF resource is currently open then it will be disconnected.
After sending this message, the service logic should send no further messages until it receives one of
the following messages from the LhoSipApp
:
SCC-HANDLE-ALEG-ABANDON-FINAL
SCC-HANDLE-BLEG-ANSWER-FINAL
SCC-HANDLE-BLEG-TEARDOWN-ONGOING
SCC-HANDLE-SHUTDOWN
The attributes of the SCC-DO-BLEG-TERMINATION-ATTEMPT
message are:
Field | Type | Description |
---|---|---|
scc
|
Object | [Required] The SCC control parameters for the message. |
.no_answer_timeout
|
Integer |
Specify how long the INVITE will be permitted to try before we CANCEL .(Default = a system-configured default value). |
.address_digits
|
(+)Hex String |
[Required] The digits part of the new To address for the B-Leg.The protocol and domain parts of the address will be determined automatically. |
.extra_headers
|
Object |
Additional user headers to add for this outbound B-Leg SIP INVITE. The object key is the header name. The object value is an array of header values. (Default = do not add extra outbound SIP INVITE user headers). |
.max_call_secs
|
Integer |
Specifies the maximum permitted call duration in seconds. The LhoSipApp may enforce minimum and maximum bounds for this value.(Default = use the max_call_secs configured on the LhoSipApp ).
|
.monitored
|
1
|
Set this value to indicate that this is a "Monitored" call attempt. At most one of monitored or charged may be specified.The call will have SIP re-INVITE activity tests sent to check that the call is still active. If this call attempt is answered, then the service logic must use the .monitor_check method to monitor the call until it completes.(Default = the call is not monitored). |
.monitor_interval_secs
|
Integer |
Specifies the interval in seconds between the SIP re-INVITE activity tests and the associated monitor reports sent back to the service logic. The LhoSipApp will enforce minimum and maximum bounds for this value.Valid only when monitored = 1 .(Default = use the activity_interval_secs configured on the LhoSipApp ).
|
.charged
|
1
|
Set this value to indicate that this is a "Charged" call attempt. At most one of monitored or charged may be specified.The call will have SIP re-INVITE activity tests sent to check that the call is still active. If this call attempt is answered, then the service logic must use the .charge_check method to control call charging until it completes.(Default = the call is not charged). |
.grant_secs
|
Integer |
[Required] Specifies the interval in seconds for the initial SIP re-INVITE activity tests and the associated first charge report sent back to the service logic. The LhoSipApp will enforce minimum and maximum bounds for this value.Valid only when charged = 1 .
|
SCC-DO-CHARGE-EXTEND
The SCC-DO-CHARGE-EXTEND
is sent by the LogicApp
to the LhoSipApp
to request that a B-Leg
be set-up by sending out a new B-Leg INVITE, and proxying the RTP connection details.
The LhoSipApp
in this case is acting as a Signaling Plane Back-to-Back User Agent (B2BUA) as defined
in RFC 7092. Specifically, as a
“Signaling-only” B2BUA as per RFC 7092, section 3.1.2.
If an (internal or external) SRF resource is currently open then it will be disconnected.
After sending this message, the service logic should send no further messages until it receives one of
the following messages from the LhoSipApp
:
SCC-HANDLE-ALEG-ABANDON-FINAL
SCC-HANDLE-BLEG-ANSWER-FINAL
SCC-HANDLE-BLEG-TEARDOWN-ONGOING
SCC-HANDLE-SHUTDOWN
The attributes of the SCC-DO-CHARGE-EXTEND
message are:
Field | Type | Description |
---|---|---|
scc
|
Object | [Required] The SCC control parameters for the message. |
.grant_secs
|
Integer |
[Required] Specifies the interval in seconds for the subsequent SIP re-INVITE activity tests and the subsequent charge reports sent back to the service logic. The LhoSipApp will enforce minimum and maximum bounds for this value.
|
SCC-DO-SHUTDOWN
The SCC-DO-SHUTDOWN
is sent by the LogicApp
to the LhoSipApp
to indicate that service logic processing
has failed unexpectedly and cannot continue. The LhoSipApp
will perform any necessary SIP transaction
closure, using final result, CANCEL, or BYE as applicable. The LhoSipApp
will raise a warning, in addition
to the service logic warning which usually arises.
No further SCC-...
messages should be exchanged after this message is sent.
The attributes of the SCC-DO-SHUTDOWN
message are:
Field | Type | Description |
---|---|---|
error
|
String | [Required] A descriptive error message to record in the warning. |
SCC-HANDLE-ALEG-INBOUND-INVITE
The SCC-HANDLE-ALEG-INBOUND-INVITE
message is generated by the LhoSipApp
and is sent to the
LogicApp when an inbound INVITE is received by the LhoSipApp
. The LhoSipApp
is configured
with the name of the LogicApp
to which the SCC-HANDLE-ALEG-INBOUND-INVITE
should be sent.
When the SCC-HANDLE-ALEG-INBOUND-INVITE
arrives at the LogicApp
, there must be a configured
LhoSipLuaService
present to receive and process it. The LhoSipLuaService
will examine the
request contents and compare that to its configured triggers
list (or database equivalent)
in order to determine which LUA script to execute.
The actual logic for selecting and loading the LUA script depends on the specific service. The matching and loading will typically come from a database, e.g. for the N2ACD-SIP implementation for Toll-Free SIP call handling.
After receiving SCC-HANDLE-ALEG-INBOUND-INVITE
, the call is “controlled” by the service logic.
The service logic must (within the service logic timer) send one of the following SIP call
control messages:
SCC-DO-ALEG-PROCEEDING
SCC-DO-ALEG-DECLINE-FINAL
SCC-DO-ALEG-HANGUP-FINAL
SCC-DO-ALEG-INTERACTION-INTERNAL
SCC-DO-ALEG-INTERACTION-EXTERNAL
SCC-DO-BLEG-TERMINATION-ATTEMPT
SCC-DO-SHUTDOWN
The attributes of the SCC-HANDLE-ALEG-INBOUND-INVITE
message are:
Field | Type | Description |
---|---|---|
scc
|
Object | [Required] The SCC control parameters for the message. |
.call_id
|
String | [Required] The SIP Call ID from the received INVITE Request. |
.from
|
Table | [Required] The decoded object representation of the "From" header. |
.header
|
String | [Required] The original "From" header value, complete. |
.display_name
|
String | The Display Name, if present. |
.parameters
|
Table |
A map of top-level parameter values (not the address parameters). This will include the tag , and could include isup-oli or other site-specific parameters.A parameter, e.g. ;urgent will be present with a value of UNDEF .
|
.address
|
Table | [Required] Container for the Address attributes. |
.uri
|
String |
[Required] The complete encoded URI including address parameters, but not including any < > .
|
.protocol
|
String |
[Required] The protocol, sip or tel .
|
.user
|
String |
[Required] The user part of the address, preceding the @ .
|
.host
|
String | The host part of the address, if present. |
.port
|
Integer | The port number part of the address, if explicitly present. |
.parameters
|
Table |
The inner address parameters (not the top-level parameters). This will include the transport parameter (if explicit), and could include otg or other site-specific parameters.A parameter, e.g. ;exdirectory will be present with a value of UNDEF .
|
.to
|
Table |
[Required] The decoded object representation of the "To" header. The table structure is identical to the structure described for the "From" header. |
.privacy
|
Table |
This table will be present only when both the sip_privacy_header parameter is enabled for the
application, and the Privacy header is present in the received A-Leg SIP INVITE.In this case, this table will have entries with keys matching each of the Privacy attributes which are present in this header, each with the value 1 .For example if the Privacy header has value user;id then this table will
be { user = 1, id = 1} .(Default = The header was not present, or the feature is not enabled for the app) |
.extra_headers
|
Table |
A table of extra headers "of interest" from the received A-Leg SIP INVITE. These are only headers specifically configured in the `<invite_headers>` configuration block. Each table entry is a non-empty list of raw header values parse for that header name. The header name key is upper/lower case as defined in the `name` attribute of the `<invite_header>` configuration, even though the matching for the header name in the SIP INVITE is performed using case-insensitive matching. (Default = no headers of interest were matched) |
.calling_party
|
(+)Hex String |
[Required] Calling Party address digits. This is the part of the P-Asserted-Identity or From address that precedes the @ .It is guaranteed to contain only 0-9A-F digits.
|
.called_party
|
(+)Hex String |
[Required] Called Party address digits. This is the part of the To address which precedes the @ .It is guaranteed to contain only 0-9A-F digits.
|
.normalised_calling_party
|
(+)Hex String |
[Required] Normalised Calling Party address digits. This is the calling_party after any configured 'called_party' normalisation rules have been applied.It is guaranteed to contain only 0-9A-F digits.
|
.normalised_called_party
|
(+)Hex String |
[Required] Normalised Called Party address digits. This is the called_party after any configured 'called_party' normalisation rules have been applied.It is guaranteed to contain only 0-9A-F digits.
|
.pending_tn
|
(+)Hex String |
[Required] Pending termination number digits. The normalised pending termination number inferred from the INVITE. It is guaranteed to contain only 0-9A-F digits.
|
.isup
|
Object | A container for any SIP-I ISUP message parsed from the received SIP INVITE Request. |
.iam
|
Table |
The decoded representation of the ISUP Initial Address Message, if one was present in the received SIP INVITE Request. This has structure as described in the N2::ISUP::IAM Codec documentation. |
SCC-HANDLE-ALEG-PROCEEDED
The SCC-HANDLE-ALEG-PROCEEDED
message is sent from the LhoSipApp
to the LogicApp
as a
response to SCC-DO-ALEG-PROCEEDING
once the proceeding is succesfully complete, because either:
- Reliable
100rel
provisional responses (i.e. PRACK) were not required, or - Reliable
100rel
provisional responses was required, and the PRACK was received.
After receiving SCC-HANDLE-ALEG-PROCEEDED
, the call is still “controlled” by the
service logic and both decline
and proceeding
methods may be used.
The service logic must (within the service logic timer) send one of the following SCC control messages:
SCC-DO-ALEG-PROCEEDING
SCC-DO-ALEG-DECLINE-FINAL
SCC-DO-ALEG-HANGUP-FINAL
SCC-DO-ALEG-INTERACTION-INTERNAL
SCC-DO-ALEG-INTERACTION-EXTERNAL
SCC-DO-BLEG-TERMINATION-ATTEMPT
SCC-DO-SHUTDOWN
The attributes of the SCC-HANDLE-ALEG-PROCEEDED
message are:
Field | Type | Description |
---|---|---|
scc
|
Object | [Required] The SCC control parameters for the message. |
.reason
|
Proceeded
|
[Required] The reason why this message was sent. The value is fixed. |
If the proceeding attempt did not succeed, then the LhoSipApp
will indicate this by sending
either SCC-HANDLE-ALEG-ABANDON-FINAL
(if the call was cancelled) or SCC-HANDLE-SHUTDOWN
(if there
is a SIP error or timeout while waiting for the PRACK).
SCC-HANDLE-ALEG-INTERACTION-COMPLETE-ONGOING
The SCC-HANDLE-ALEG-INTERACTION-COMPLETE-ONGOING
message is sent from the LhoSipApp
to the LogicApp
as a
response to SCC-DO-ALEG-INTERACTION-INTERNAL
or SCC-DO-ALEG-INTERACTION-EXTERNAL
if the interaction completes with the A-Leg still active.
After receiving SCC-HANDLE-ALEG-INTERACTION-COMPLETE-ONGOING
, the call is still “controlled” by the
service logic. The service logic must (within the service logic timer) send one of the following
SCC control messages:
SCC-DO-ALEG-PROCEEDING
(ifdecline_ok
is true)SCC-DO-ALEG-DECLINE-FINAL
(ifdecline_ok
is true)SCC-DO-ALEG-HANGUP-FINAL
SCC-DO-ALEG-INTERACTION-INTERNAL
SCC-DO-ALEG-INTERACTION-EXTERNAL
SCC-DO-BLEG-TERMINATION-ATTEMPT
SCC-DO-SHUTDOWN
The attributes of the SCC-HANDLE-ALEG-INTERACTION-COMPLETE-ONGOING
message are:
Field | Type | Description |
---|---|---|
scc
|
Object | [Required] The SCC control parameters for the message. |
.error
|
String | An optional interaction error related to a problem in playing the announcement or collecting input. |
.digits
|
#*A-F0-9
|
Input digits collected from user. May include * or # characters according to the MS/SRF's interpretation.The .digits and .error are mutually exclusive.In theory, the MS/SRF should return no digits at all in the case where insufficient digits are entered. However, that behavior can vary according to SRF manufacturer, and the service logic should always validate the number of digits returned. |
.decline_ok
|
0 / 1
|
Indicates if the service logic may still send the SCC-DO-ALEG-DECLINE-FINAL message.(Default = 0 , decline is not permitted)
|
SCC-HANDLE-ALEG-INTERACTION-ABANDONED-FINAL
The SCC-HANDLE-ALEG-INTERACTION-ABANDONED-FINAL
message is sent from the LhoSipApp
to the LogicApp
as a
response to SCC-DO-ALEG-INTERACTION-INTERNAL
or SCC-DO-ALEG-INTERACTION-EXTERNAL
if the interaction completes with the A-Leg no longer active.
After receiving SCC-HANDLE-ALEG-INTERACTION-ABANDONED-FINAL
, the call is no longer “controlled” by the
service logic.
No further SCC-...
messages should be exchanged after this message is sent.
The attributes of the SCC-HANDLE-ALEG-INTERACTION-ABANDONED-FINAL
message are:
Field | Type | Description |
---|---|---|
scc
|
Object | [Required] The SCC control parameters for the message. |
.reason
|
Abandoned
|
[Required] The reason why this message was sent. The value is fixed. |
Note that it is possible to have digits
returned even if the interaction was abandoned.
This may happen with some SRF behaviors, and/or some timing conditions.
SCC-HANDLE-ALEG-ABANDON-FINAL
The SCC-HANDLE-ALEG-ABANDON-FINAL
message is sent from the LhoSipApp
to the LogicApp
at any
time when the A-Leg abandons the call.
At this SIP level, this will be when the A-Leg sends CANCEL
(in the case that no final response
has yet been sent to the originator), or when the A-Leg sends BYE
(in the case where the B-Leg
is being established by a re-INVITE).,
After receiving SCC-HANDLE-ALEG-ABANDON-FINAL
, the call is no longer “controlled” by the
service logic.
No further SCC-...
messages should be exchanged after this message is sent.
The attributes of the SCC-HANDLE-ALEG-ABANDON-FINAL
message are:
Field | Type | Description |
---|---|---|
scc
|
Object | [Required] The SCC control parameters for the message. |
.reason
|
Abandoned
|
[Required] The reason why this message was sent. The value is fixed. |
.talk_dsm
|
Integer |
The total talk-time in deci-seconds as measured by the SIP call control app. This field is present only when the call was successfully established. It will include confirmed time up to the successful BYE sequence, or the preceding successful activity test (if any). (Default = 0 , no talk-time was confirmed)
|
SCC-HANDLE-BLEG-ANSWER-FINAL
The SCC-HANDLE-BLEG-ANSWER-FINAL
message is sent from the LhoSipApp
to the LogicApp
as a
response to SCC-BLEG-TERMINATION-ATTEMPT
if and when the termination attempt is successful,
(i.e. the B-Leg confirms the call with a 2XX
final response and the ACK
is successful)
and when the service logic is not monitoring the call.
The call is now in progress. The LhoSipApp
will stay in the signalling path in order to
pass-through the BYE
, performing its role as a SIP back-to-back user agent (B2BUA).
However, for B-Legs initated by SCC-BLEG-TERMINATION-ATTEMPT
without monitoring, the call is no longer
“controlled” by the service logic after receiving SCC-HANDLE-BLEG-ANSWER-FINAL
.
No further SCC-...
messages should be exchanged after this message is sent.
The attributes of the SCC-HANDLE-BLEG-ANSWER-FINAL
message are:
Field | Type | Description |
---|---|---|
scc
|
Object | [Required] The SCC control parameters for the message. |
.reason
|
Answered
|
[Required] The reason why this message was sent. The value is fixed. |
SCC-HANDLE-BLEG-ANSWER-ONGOING
The SCC-HANDLE-BLEG-ANSWER-ONGOING
message is sent from the LhoSipApp
to the LogicApp
as a
response to SCC-BLEG-TERMINATION-ATTEMPT
if and when the termination attempt is successful,
(i.e. the B-Leg confirms the call with a 2XX
final response and the ACK
is successful)
and when the service logic is monitoring/charging the call.
The call is now in progress. The LhoSipApp
will stay in the signalling path in order to
pass-through the BYE
, performing its role as a SIP back-to-back user agent (B2BUA).
The service logic is also staying in the control path for the duration of the call, and is responsible for “sweeping” the subsequent SCC messages which may be sent to the service:
SCC-HANDLE-MONITOR-REPORT
SCC-HANDLE-ALEG-ABANDON-FINAL
After receiving SCC-HANDLE-BLEG-ANSWER-ONGOING
or SCC-HANDLE-MONITOR-REPORT
, the service logic may force the call to be ended by sending:
SCC-DO-SHUTDOWN
Note that “.decline” is never OK after this message.
The attributes of the SCC-HANDLE-BLEG-ANSWER-ONGOING
message are:
Field | Type | Description |
---|---|---|
scc
|
Object | [Required] The SCC control parameters for the message. |
.monitored
|
1
|
This call is monitored by the service logic (not charged). Exactly one of monitored or charged must be present in this message.
|
.charged
|
1
|
This call is charged by the service logic. Exactly one of monitored or charged must be present in this message.
|
.reason
|
Answered
|
[Required] The reason why this message was sent. The value is fixed. |
.max_call_secs
|
Integer |
[Required] The actual maximum permitted call duration in seconds to be used for this call. This value may differ from the requested value, it may have defaults, minimum, or maximum limits applied. |
.monitor_interval_secs
|
Integer |
[Required] The actual monitor reporting interval call duration in seconds to be used for this call. This value may differ from the requested value, it may have defaults, minimum, or maximum limits applied. |
SCC-HANDLE-BLEG-FAILURE-ONGOING
The SCC-HANDLE-BLEG-FAILURE-ONGOING
message is sent from the LhoSipApp
to the LogicApp
as a
response to SCC-DO-BLEG-TERMINATION-ATTEMPT
if and when the termination attempt fails
due to being declined by the B-Leg.
After receiving SCC-HANDLE-BLEG-FAILURE-ONGOING
, the call is still “controlled” by the
service logic. The service logic must (within the service logic timer) send one of the following
SCP control messages:
SCC-DO-ALEG-PROCEEDING
(ifdecline_ok
is true)SCC-DO-ALEG-DECLINE-FINAL
(ifdecline_ok
is true)SCC-DO-ALEG-HANGUP-FINAL
SCC-DO-ALEG-INTERACTION-INTERNAL
SCC-DO-ALEG-INTERACTION-EXTERNAL
SCC-DO-BLEG-TERMINATION-ATTEMPT
SCC-DO-SHUTDOWN
The attributes of the SCC-HANDLE-BLEG-FAILURE-ONGOING
message are:
Field | Type | Description |
---|---|---|
scc
|
Object | [Required] The SCC control parameters for the message. |
.reason
|
"No Answer" / "No Route" / "Declined"
|
[Required] The reason why the B-Leg could not be established. |
.code
|
Integer |
The received SIP B-Leg final response status code, in the range 300 -699 .This is present, except for the case where .reason = "No Route" .
|
.decline_ok
|
0 / 1
|
Indicates if the service logic may still send the SCC-DO-ALEG-DECLINE-FINAL message.(Default = 0 , decline is not permitted)
|
SCC-HANDLE-BLEG-TEARDOWN-ONGOING
The SCC-HANDLE-BLEG-TEARDOWN-ONGOING
message is sent from the LhoSipApp
to the LogicApp
as a
response to SCC-DO-BLEG-TERMINATION-ATTEMPT
if and when the termination attempt succeeds,
and then the call ends because of B-Leg hangup.
After receiving SCC-HANDLE-BLEG-TEARDOWN-ONGOING
, the call is still “controlled” by the
service logic. The service logic must (within the service logic timer) send one of the following
SCP control messages:
SCC-DO-ALEG-HANGUP-FINAL
SCC-DO-ALEG-INTERACTION-INTERNAL
SCC-DO-ALEG-INTERACTION-EXTERNAL
SCC-DO-BLEG-TERMINATION-ATTEMPT
SCC-DO-SHUTDOWN
Note that “.decline” is never OK after this message.
The attributes of the SCC-HANDLE-BLEG-TEARDOWN-ONGOING
message are:
Field | Type | Description |
---|---|---|
scc
|
Object | [Required] The SCC control parameters for the message. |
.reason
|
"Hangup"
|
[Required] The reason why this message was sent. The value is fixed. |
.talk_dsm
|
Integer | [Required] The total talk-time in deci-seconds as measured by the SIP call control app. |
SCC-HANDLE-SHUTDOWN
The SCC-HANDLE-SHUTDOWN
is sent by the LhoSipApp
to the LogicApp
to indicate that call
processing has failed unexpectedly and cannot continue. The LhoSipApp
has perform any
necessary SIP transaction closure, using final result, CANCEL, or BYE as applicable, and
has raised a warning.
No further SCC-...
messages should be exchanged after this message is sent.
The attributes of the SCC-DO-SHUTDOWN
message are:
Field | Type | Description |
---|---|---|
error
|
String | [Required] The descriptive error message raised in the warning. |
