N2IVR (INAP)
Introduction

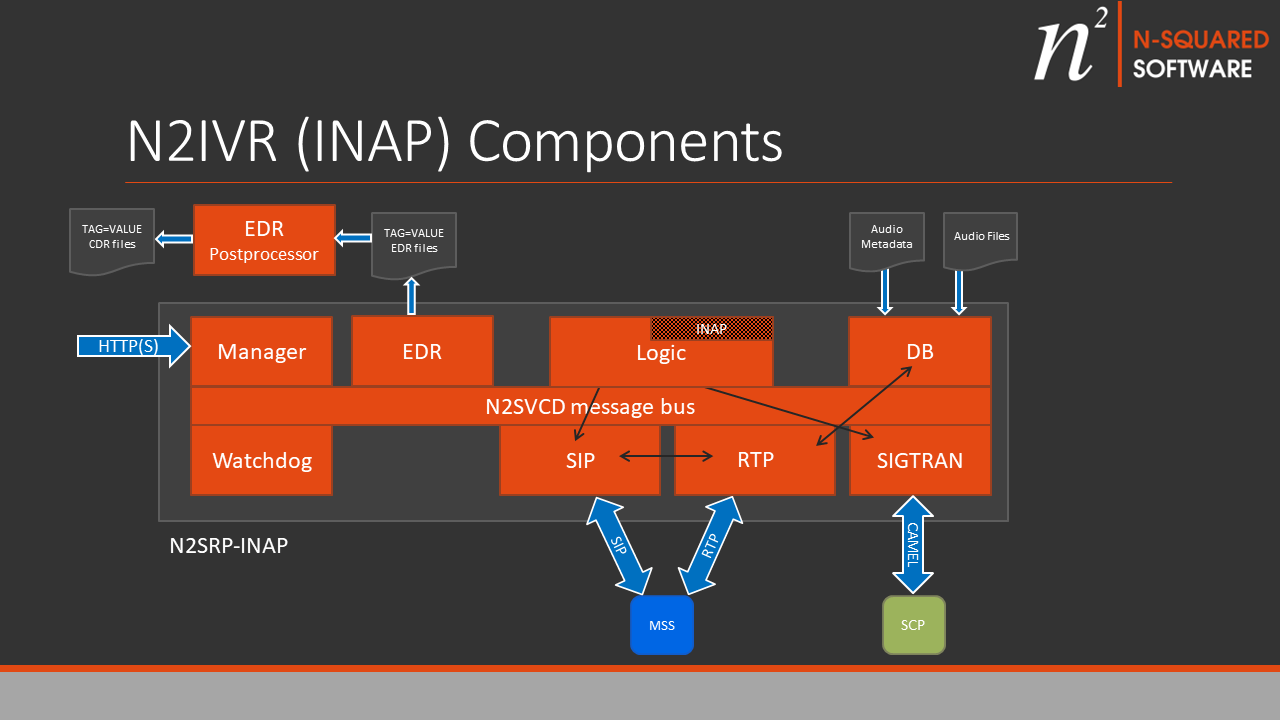

This section describes a base/typical deployment of the N2IVR product configured to offer INAP call control.
The solution specific applications which must be configured are:
- LhoSipApp (SIP in this diagram)
- LogicApp (Logic in this diagram)
- RtpApp (RTP in this diagram)
- SigtranApp (SIGTRAN in this diagram)
- DBApp (DB in this diagram)
The sub-component labelled “IVR” is the n2ivr_inap.lua
script which defines the service logic.
LhoSipApp
The LhoSipApp
is responsible for accepting the inbound SIP INVITE request, and handing it off to
the LogicApp
for call control.
You will need to review and configure the common SIP configuration parameters for this application as described in the Common SIP Configuration page. The default parameters should typically startup and function. Parameter settings are deployment-specific and cannot be generalised here.
In addition, for an N2IVR deployment of LhoSipApp
set the additional parameters:
- Parameter
rtp_app_name
must refer to the name of yourRtpApp
. - Parameter
default_logic_app_name
must refer to the name of yourLogicApp
.
You can only have on LhoSipApp
per SIP port number. I.e. you may not use the repeat
attribute for this application unless you use multiple SIP ports.
NOTE: To migrate from SrpSipApp
the following tasks are required:
- Modify the
module
fromSrpSipApp
toLhoSipApp
. - Modify the directory in the
lib
fromsrp_sip
tolho_sip
. - Remove parameters:
ossn
,correlation_id_len
,scp_id_location
,scp_id_len
,default_sigtran_app_name
. - Other parameters are SIP configuration common to both applications and should be retained.
Regarding the removed parameters listed above:
- The
ossn
parameter is configured on theSigtranApp
. - The
default_sigtran_app_name
is nowdefault_tcap_app_name
and is configured as aLogicApp
parameter. - The
correlation_id_len
,scp_id_location
,scp_id_len
values have moved theINAP_CONFIG
global structure.
The LhoSipApp
will communicate with the LogicApp
. At the start of the call control it sends the message SCC-HANDLE-ALEG-INBOUND-INVITE
.
The LhoSipApp
will communicate with the RtpApp
. When the RTP channel is required it sends the message RTP-ESTABLISH
.
LogicApp
Configure a LogicApp
as described in the Logic App Configuration page.
Various IVR-specific configuration is required, including application parameters:
- The
default_lua_lib_path
must include then2sip
lua lib path. - The
default_tcap_app_name
should be the name of theSigtranApp
for sendingAssistRequestInstructions
.
Example:
<parameters>
<parameter name="default_lua_lib_path" value="../lua/lib/?.lua;../../n2sip/lua/lib/?.lua"/>
<parameter name="default_tcap_app_name" value="SIGTRAN"/>
...
The InapLuaAgent
and TcapLuaAgent
agents must be configured. The IVR uses the INAP Agent to encode and decode
INAP operation parameters. The IVR uses the TCAP Agent to send and receive TCAP messages via the configured SigtranApp
.
Example:
<agents>
<agent module="SigtranApp::InapLuaAgent" libs="../apps/sigtran/lib"/>
<agent module="SigtranApp::TcapLuaAgent" libs="../apps/sigtran/lib"/>
</agents>
There must be an LhoSipIncallLuaService
configured which handles the SIP incall sequence which begins when the LogicApp receives SCC-HANDLE-ALEG-INBOUND-INVITE
.
This must have:
- A global named
INAP_CONFIG
which contains the IVR configuration attributes related to INAP call control. - At least one
trigger
entry intriggers
which points to then2ivr_inap
script containing the IVR INAP control logic.
Example:
<application name="Logic" module="LogicApp">
<include>
<lib>../apps/logic/lib</lib>
</include>
<parameters>
<parameter name="default_lua_lib_path" value="../lua/lib/?.lua;../../n2sip/lua/lib/?.lua"/>
<parameter name="default_tcap_app_name" value="SIGTRAN"/>
</parameters>
<services>
<service module="LhoSipApp::LhoSipIncallLuaService" libs="../../n2sip/apps/lho_sip/lib" script_dir="../../n2sip/lua/svc" edr_stream_key="n2ivr">
<globals>
<global name="INAP_CONFIG">
<scps type="array">
<scp id="1" dpc="4114" dssn="106"/>
</scps>
<correlation_id_len type="integer" value="3"/>
<scp_id_location value="before"/>
<scp_id_len type="integer" value="1"/>
<nap_language_extension_id type="integer" value="400"/>
<default_language_name value="English"/>
<languages type="array">
<language id="1" name="English"/>
<language id="2" name="German"/>
</languages>
</global>
</globals>
<triggers >
<trigger to_dtg="IVR" script_key="n2ivr_inap"/>
</triggers>
</service>
...
The parameters in INAP_CONFIG
are defined in the N2IVR (INAP) Lua Application Configuration page.
The LogicApp
may have the “repeat” attribute configured to run multiple instances sharing system load, however this is not typically required even under load.
The LogicApp
will communicate with the LogicApp
by responding to the SCC-HANDLE-ALEG-INBOUND-INVITE
message and subsequently exchanging messages to control the RTP stream and the SIP call.
The LogicApp
will communicate with the SigtranApp
by using the TcapLuaAgent
to send a TCAP-SEND
message containing the AssistRequestInstructions
and subsequently sending/receiving TCAP messages containing INAP/CAMEL components and/or pre-arranged end.
RtpApp
The RtpApp
should be configured as as described in the RTP App Configuration page.
The RtpApp
may have the “repeat” attribute configured to run multiple instances sharing system load, and this is typically required for deployments which
are expected to operate more than 100 channels. Refer to the RTP App Configuration page especially for information how RTP port assignment
functions when using the “repeat” attribute.
The RtpApp
will communicate with the LhoSipApp
by responding to the RTP-ESTABLISH
message and processing RTP-PLAY
/RTP-PLAYED
messages.
The RtpApp
will communicate with the DBApp
by sending DB-REQUEST
to fetch audio metadata and audio data from the database.
Note: The RtpApp
can also be configured to operate from flat file configuration/audio without using the database.
DBApp
The DBApp
should be configured as as described in the DB App Configuration page.
The DBApp
may have the “repeat” attribute configured to run multiple instances sharing system load. It may be desirable to run more than one copy of the DBApp in order to reduce set-up latency.
The DBApp
for RTP operates in DBI mode.
The DBApp
responds to the DB-REQUEST
messages received from the RtpApp
and returns DB-RESPONSE
messages.
SigtranApp
The SigtranApp
should be configured as as described in the SIGTRAN App Configuration page.
SIGTRAN parameter and connection settings are deployment-specific and cannot be generalised here.
You can only have on SigtranApp
per SCTP port number. I.e. you may not use the repeat
attribute for this application unless you use multiple SCTP ports.
The SigtranApp
responds to the TCAP-SEND
messages received from the LogicApp
.
