Branch Counter

The Branch Counter Node

Category - Flow Control

The Branch Counter Node uses monitors a counter, and branches according to its value as the node is encountered:

• If the counter is less than or equal to the specified threshold, or
• If the counter exceeds the threshold.

The loop counters available are configured within the N2ACD application.

Loop counters apply only to the call in progress and are not shared system-wide values.

This node is useful in conjunction with the Increment Counter node to perform looping with a flow for the current call.

Configuration

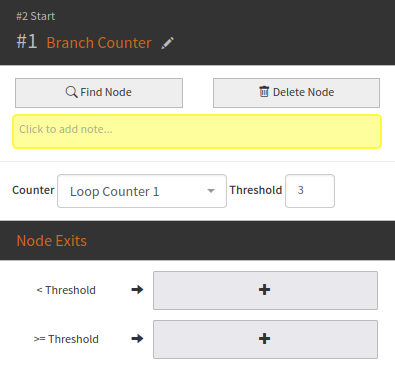

To configure the node:

1. Select the Counter to branch for.
2. Set the Threshold that will be used.

Note that both a loop counter and a limit must be defined.
